Magnetron Sputtering System / Machine PVD - PTL6SLL



Plasma Technology Limited PTL develops different con-focal, sputter tools with rotating substrates and tilting magnetron sputter sources as well as power control units.  Those developments yielded extremely uniform and controllable depositions of single layers, multi-layers and alloys and have become the most popular R&D sputtering system configuration on the market. PTL can design the PVD system to deliver maximum performance for limited budgets.

The systems inherit many design features and common parts from the highly evolved PTL sputtering tools. Typically, our PVD systems feature a number of fixed angle sources (2") on the cluster flanges for con-focal sputtering and can be fitted with rotary and heating stage to accommodate substrate up to 4" in diameter.

Our magnetron sputtering sources (2" target sizes) are designed specifically to fit cluster flanges for the compact PVD Systems. The basic magnetron and cathode assembly is identical to the unique modular magnetrons. The magnet array can be configured by the customer to operate in the balanced, unbalanced and magnetic material modes. Due to the compact design, the complete shutter and ground shield with isolation chimney assembly is quickly removed with only three screws for easy target access.



PTL uses electromagnetic finite element calculations in the design of the permanent magnetic assembly to achieve high field strength and uniform field profile. The source can accommodate a wide range of sputtering targets, metallic or insulating, magnetic or non-magnetic. It features a unique "Modular Magnet Array" that allows the user to change from balanced to unbalanced sputtering modes in minutes. All of our magnetrons utilize circular rare-earth magnets that are isolated from water to eliminate magnet deterioration and are easily field replaceable.

The con-focal PVD systems utilize motorized, rotating substrate holders to achieve excellent uniformity, allow the co-deposition of alloy films and facilitate the deposition of pristine, ultra-thin film multilayers since the substrate is always "in the plasma". Substrate heaters are available to reach up to 850 degree C and feature reactive gas injection rings, RF/DC bias capability, in-situ manual substrate height adjustment upto 50mm.





The PVD system can be either in manual control or in touch screen PLC control. In PLC control, the system utilizes a large touch screen associate with keyboard and mouse mounted on a 1.8 meter cabinet. The control system allows the user to operate in either the "manual mode" or the "automated processing mode". The system allows 3 levels (User, Advance, and Administrator) of access and thereby preventing unexpected corruption of a user's saved processes and unexpected configuration amendments.


Process Applications

Our PVD sputtering system has high repeatability and can be used to develop high-stacking multiple nanolayers and elementary doping.

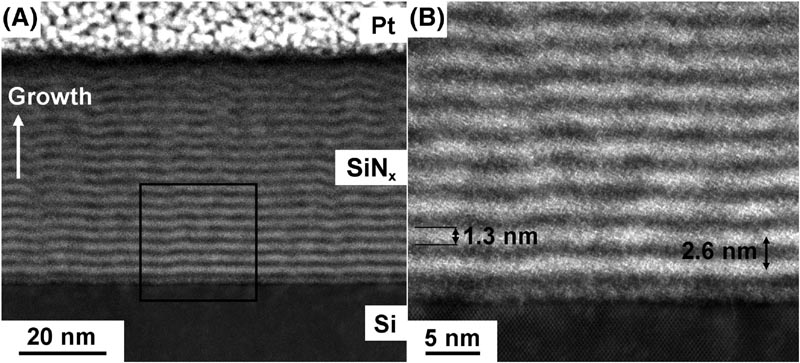

The following pictures show the Silicon Nitride film has been cross doped by rare earth Tb and Yb.

Source: Progress in Photovoltaics Research and Applications 27(5):152-162 February 2019

Title: First down converter multilayers integration in an industrial Si solar cell process


 Download Magnetron Sputtering Systems Brochure



For additional product information and pricing contact our specialists at sales@plasmatechnol.com.


For high purity magnetron sputtering targets:



please kick Here.




For other related PVD Sputtering Systems:



PTL5S PVD Sputtering System



MS400 PVD Sputtering System
