Plasma Technology Limited PTL has developed Electrolytic Plasma Polishing EPP technique to polish different material surface. Unlike the electrochemical polishing, EPP process takes place in solution of inorganic salts and is an ecologically safe polishing technique. PTL can provide turnkey service for the technique.
In EPP process, the metallic workpieces will be anodically polarized and are placed in an electrolytic bath. The electrolyte consists of a solution of about 97% water and 2-4% salt. The process produces gas which completely surrounds the workpiece to be polished and results in establishment of plasma layer. This plasma combined with the electrochemical reactions on the workpiece surface led to a reduction of the roughness as well as removes organic and inorganic contaminants with minimal mass loss. Depending on the material specifications the typical material removal lies between 1-5 um per minute. The geometric shape of the component is almost maintained and very low surface roughness (Ra<0.02um ) and high gloss level can be achieved after the process.

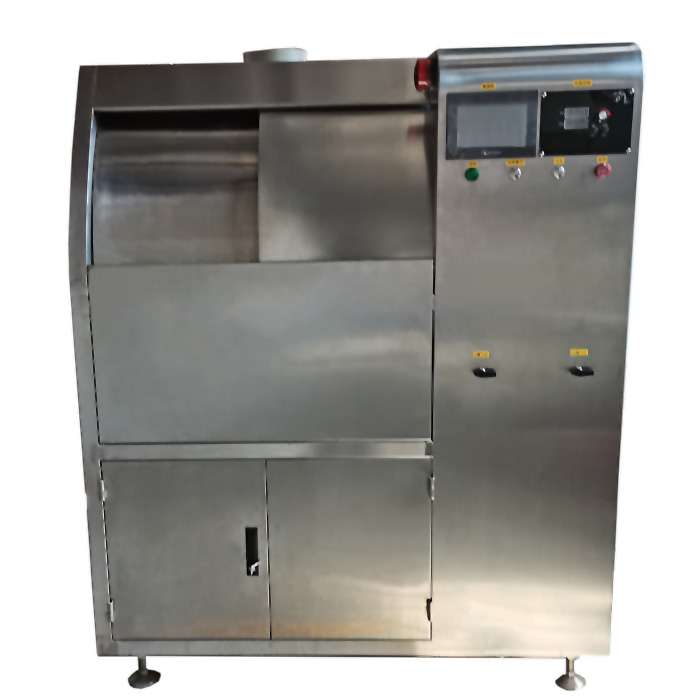

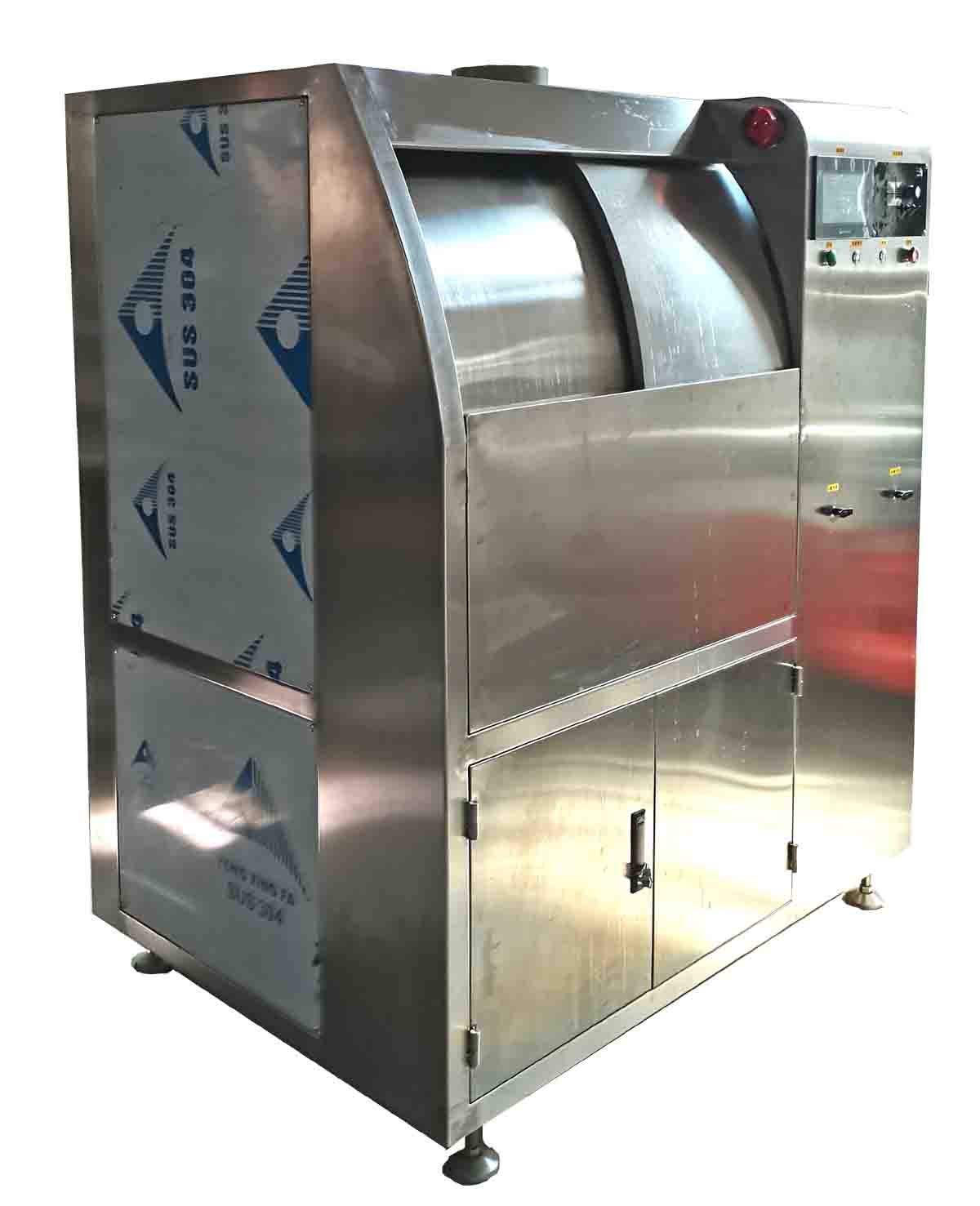

EPP100AD Specifications
Item No. |
Name |
Descriptions |
1 |
Machine Dimension |
L1480 x W1080 x H1680 mm |
2 |
Machine Shell |
SS304 steel |
3 |
Tank Material |
SS316 steel |
4 |
Sink Volume |
90L |
5 |
Salt Amount |
About 4kg per tank |
6 |
Machine Door |
Manual door |
7 |
Hanging Device |
Sprocket robotic arm lifting and lowering |
8 |
Robot Arm Stroke |
500mm |
9 |
Water Supply and Water Level Control |
Auto water supply and level control by solenoid valves |
10 |
Heating System |
PID control for heating bars
Heating power of 9kW |
11 |
HMI Control |
Touch-screen + PLC control |
12 |
Power Supply Dimension |
Integrated into the machine rack |
13 |
DC Power Supply |
100A with adjustable voltage and current, forced air cooling |
14 |
Power Consumption |
31kW |
15 |
Input Power |
3-phase 380V, 50/60Hz, 80A |
16 |
Protection |
Phase, under-temperature, over-heat and over-current protections |
17 |
Footprint |
About 5m x 4m |
========================================================
