  Plasma and Ion Sources >> Gridless Gas Ion Source


Gridless Gas Ion Source

The ion source is ideal for a wide variety of applications such as surface precleaning to enhance film/substrate adhesion, ion beam bombardment to improve film microstructures and properties, sputtering of different target materials for deposition, assisting film growth, and so on.

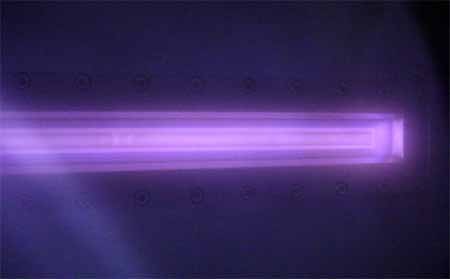

Linear ion source

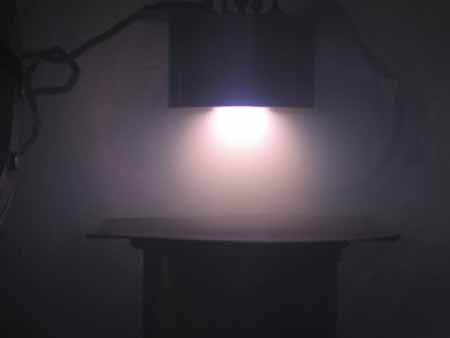

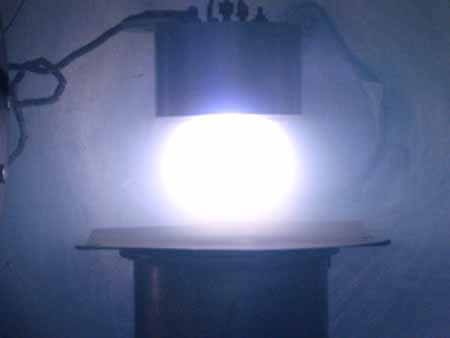

Circular ion source

Applications

  • ­Reactive gas compatible
  • ­Ion beam etching, cleaning and sputtering
  • ­Ion beam assisted deposition
  • Surface activation
  • ­In-situ ion beam pre-cleaning in a static processing system
  • ­Direct deposition of thin films (e.g., DLC using hydrocarbon based gases)
  • ­Industrial, low maintenance design


Technical Specifications

Mean Ion Energy (eV)
100-1000
Ion Beam Density (mA/cm2)
0.2-3(Circular), 5-30(Linear)
Beam Uniformity (%) 15
Beam Divergence (in degree) 60
Discharge Voltage (V) 200-2000
Discharge Current (A) 0.1-1(Circular), 0.2-10(Linear 0.3m-5.0m)
Operating Pressure Range (mTorr) 0.8-50
Mounting Options Flange and Remote

Circular flange mount source:

        Can be designed according to the internal diameter of flange



Linear flange mount source:

Can be designed according to the required length from 0.3 meter to longer than 1.0 meter






Our circular ion source can be integrated into PVD cluster sputtering sources system to assist processes development.




Our linear ion source can also be integrated into industrial multiple sputtering sources system to conduct sample pre-cleaning and to enhance ionization of sputtered materials so as to improve film adhesion and quality for reactive deposition







For additional product information and pricing contact our specialists at sales@plasmatechnol.com.




Related Scientific Publications

1. D. L. Tang, S. H. Pu, X. M. Qiu, and P. K. Chu, Linear Ion Source with Magnetron Hollow Cathode Discharge, Review of Scientific Instruments, vol. 76, no. 11, pp. 113502-1 - 113502-4 (2005).

2. S. F. Geng, X. M. Qiu, C. M. Cheng, P. K. Chu, and D. L. Tang, "Three-Dimensional Particle-in-Cell Simulation of Discharge Characteristics in Cylindrical Anode Layer Hall Plasma Accelerator", Physics of Plasmas, vol. 19, no. 4, pp. 043507-1 -043507-5 (2012).

3. S. F. Geng, D. L. Tang, C. X. Wang, X. M. Qiu, and P. K. Chu, "Concentrated Ion Beam Emitted from an Enlarged Cylindrical-Anode-Layer Hall Plasma Accelerator and Mechanism", Journal of Applied Physics, vol. 113, no. 4, pp. 043302-1 - 043302-5 (2013).
