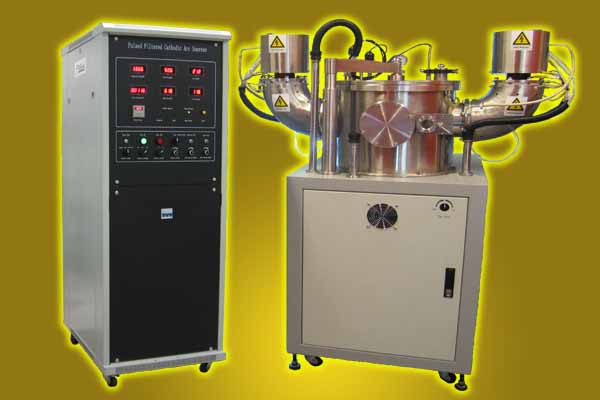

Pulsed Filtered Cathodic Arc Source

Cathodic vacuum arc source is an intense source of highly ionized plasma, where the arc current can be up to above 300A, ideal for depositing and implanting different elements into a surface. With incorporation of macroparticle 90o curved filter, the almost fully ionized plasma guided by electromagnetic fields, it is currently used for reactive deposition of defect and pinhole free, dense, protective, or decorative coatings as well as nano-structured, nano-composited and multilayer thin films , such as TiN and TiAlN, Zr3N4, TiCN., ZnO, HfO and so on.









Plasma Technology Limited can provide the Pulsed Filtered Cathode Arc Source with the following special features:

  1. Pulse-to-pulse control by pulse counter and fixer so as to timing the process by pulse number
  2. Controllable plasma output for ultra thin film deposition
  3. Remote control of pulse discharge so that it can be synchronic operated with specimen bias voltage for ion implantation and deposition


Main Features:



  • Pure Metallic Ion Beam Deposition / Implantation

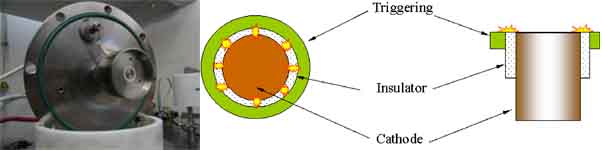

  •  Innovative Cathode/Anode Design
  •   produce stable pulse arc and plasma beam
  • Cathode Burning Thruster
  •   Stabilize arc discharge and improve cathode erosion performance

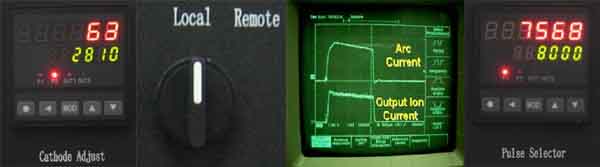

  • Pulse Selection Unit
  •   counting successful arc and matching the selected parameters
  •   fine control of deposition process
  • Adjustable Plasma Beam Output
  •   precise control of deposition thickness
  • Room Temperature Deposition
  • Large Coating Area
  • Low Cathode Cost
  • User-Friendly Interface




Applications:

Functional coatings:

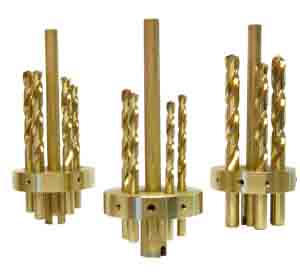

Industrial drills coated with TiN have high surface hardness and long service lifetime.



Microelectronic materials fabrication:

Nitrided ZrO2, which has high crystilline temperature and good interface,  is used as high-k dielectric gate oxide for C-MOS.



Biomaterials enhancement:

PVC with embedded Cu nano-dots has high degree of antibacterial property and long service lifetime.




Why Pulse ?

  • Pulses are countable
  • Peak power can be orders of magnitude above DC value
  • Obtaining new parameters for process control such as pulse width, pulse frequency, pulse number and ion energy range to obtain different film microstructures........
  • As a pure metal ion implantation ion source when operated with high voltage pulse bias
  • Higher arc discharge voltage and current induce higher ionization rate. (>50V, > 400A)
  • Creating  greater atomic excitation of reactive gases and higher degree of dissociation in molecular species resulting in excellent reactive deposition
  • Lower cathode temperature reduce of macroparticle production


Technical Specifications:

  • Cathode Dimension: F10 mm x 30 mm. Electrically push in and out by cathode adjustor
  • Discharge Pulse Duration: 0.2 - 5 ms. Continuously adjustable.
  • Pulse Frequency: 0-50 Hz. Continuously adjustable.
  • Duty Cycle: <5%
  • Anode Voltage: <100V
  • Anode Current: <6A
  • Filter: 90o electromagnetic filtered
  • Pulse Selector: pulse-to-pulse to count arc discharge and control the  process
  • Duct: Compatible to the flange on buyer's chamber
  • 1 BNC input port for external trigger signal
  • Removable stainless steel foil for the inner wall of duct
  • Stainless steel mechanical shields to cover source head and duct
  • Input of Power Supply: 3-phases 380V, 50/60Hz, 60A
  • Cabinet dimension: 1600 mm x 600 mm x 800 mm.
